Ultra-Low Chamber (ULC) Series

ULC-259

Ideal for high-density material storage across a broad temperature band (+2°C to +8°C and -20°C to -80°C with options for -40°C storage), ULC-259 offers uniform, efficient, sustainable performance to support fully redundant production-scale processing and storage across life science applications.

259 cu. ft. | 7,334 L
Total Chamber Volume
73.2 sq. ft. | 6.8 m2
Area Footprint

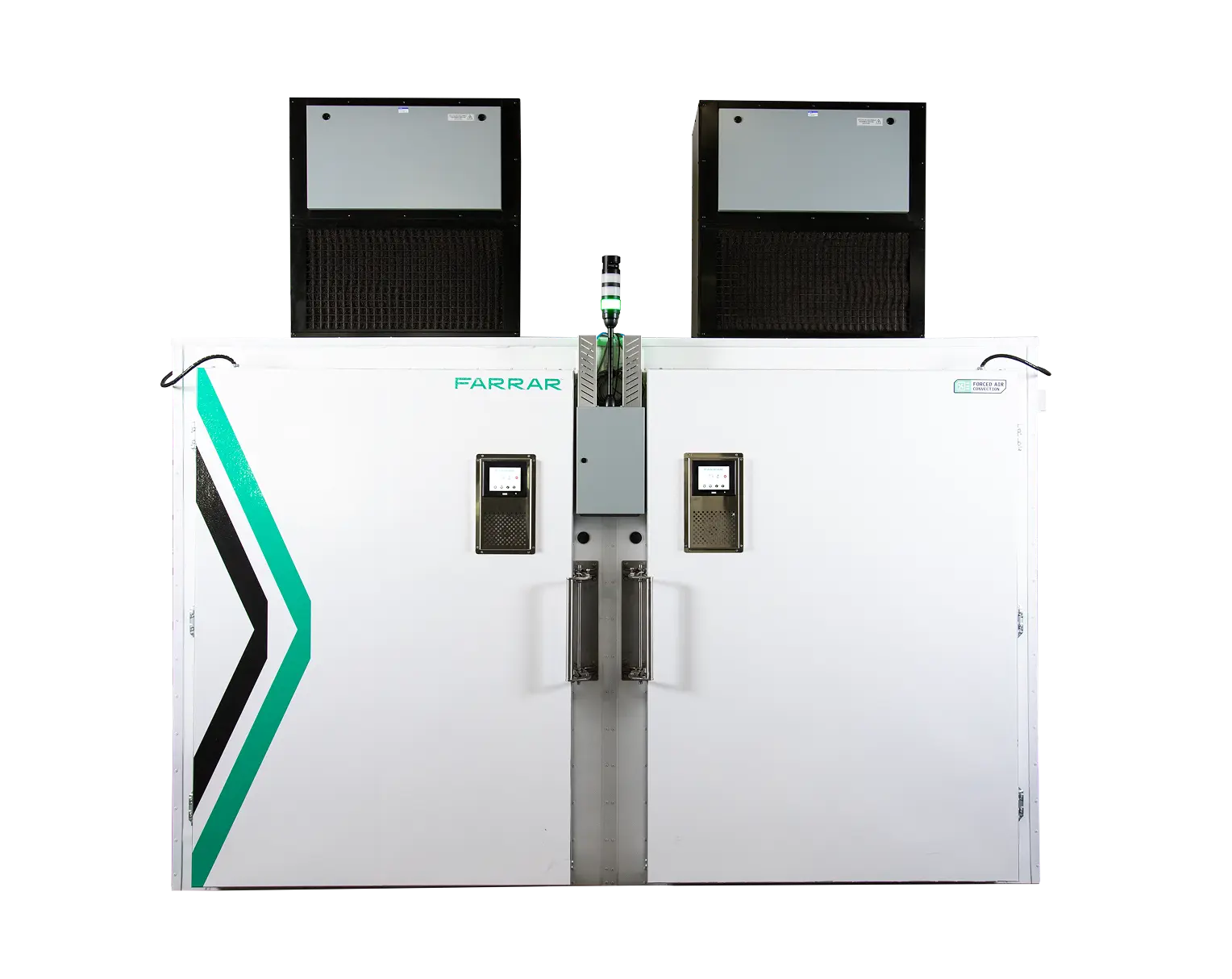

ULC-259 Product Image, straight-on
ULC-259 Specifications
For full unit details see the ULC-259 Technical Data Sheet or contact an Account Executive
.
ULC-190
ULC-259
ULC-328
Total Chamber Volume
190 cu. ft. | 5,380 L
259 cu. ft. | 7,334 L
328 cu. ft. | 9,288 L
Area Footprint
47 sq. ft. | 4.36 m2
73.2 sq. ft. | 6.8 m2
73.2 sq. ft. | 6.8 m2
High/Low Stage Refrigeration
R-449A / R-508B
R-449A / R-508B
R-449A / R-508B
Uniformity Air Temperature (empty chamber)
+/- 3.0°C
+/- 3.0°C
+/- 3.0°C
Temperature Band
+2°C to +8°C | -20°C to -80°C
+2°C to +8°C | -20°C to -80°C
+2°C to +8°C | -20°C to -80°C
Material Handling Options
Shelves, Product Carts, Transfer Cart
Sliding Shelves, Product Carts, Transfer Carts
Palettes, Product Carts, Transfer Carts

Forced Air Convection: An Industry Game Changer

Forced air convection technology affects three critical performance metrics: temperatureuniformity, chamber pull down, and recovery after door openings.

ULC Series freezers actively circulate conditioned air throughout the chamber. The result? FARRAR freezers and freeze/thaw equipment are over 30% more efficient at removing heat1 than the traditional cold-wall heat displacement process.

But we didn’t  stop there. Recovery from door openings is critical to helping maintain product integrity. We designed the FARRAR ULC Series with dual refrigeration units, providing full redundancy and allowing chambers to recover to -80°C up to 3 times faster2 than conventional ultra-low technology.

1, 2 Based on internal testing conducted across multiple equipment types. Individual results may vary depending on equipment, configuration, and operating conditions.

LEARN MORE ABOUT COLD-WALL VS. CONVECTION COOLING
ULC forced-air convection
FARRAR® Cold Storage Equipment Line Card
Brochure
324.2 kB
download
FARRAR® Cold Storage Solutions Capabilities Brochure
Brochure
2.45 MB
download
FARRAR® Ultra-Low Chamber Series Technical Data Sheet
Data Sheet
171.4 kB
download
FARRAR® Ultra-Low Chamber Series Product Manual
Manual
2.31 MB
download
FARRAR® ULC-259 Water-Cooled Spec Sheet
Spec Sheet
1.31 MB
download
FARRAR® ULC-259 Air-Cooled Spec Sheet
Spec Sheet
1.54 MB
download

Purpose-Built for the challenge of storing biological materials.

Contact a Cold Chain Expert today to learn more about how Ultra-Low Chamber (ULC) Series can meet the high performance demands of your life sciences application.
